Cove Lighting with LED strips - how to?

lightdubai lighitng guide.png

?

?

?

?

the lightdubai lighting guide

A cove light is a line of light that can obtained via a LED strip hidden from view inside a cove in the wall or ceiling. This illuminates an adjacent surface and light is reflected from it into the space that has to be illuminated. That is why lines of light are commonly known as cove or indirect lighting.

Cove lighting is beneficial trend to design lighting, with focus on human nature and how natural light behaves. It is today widely adopted, with lines of light as a principal way to illuminate many interiors.

The allure is the similarity with natural light. With the proper light source used, we could imagine that the cove is actually a hidden window to the outside from where sunlight flows in.

Lets explore how we can have the best results with cove lighting.

1. Use energy efficient light sources

Pick LED modules or strips with high energy efficacy, at least 90-100 lm/w, and place them inside the cove light in a way that most of the emitted light reaches the reflective surface, such as a wall or ceiling. Wasting energy to illuminate the insides of the cove should be prevented. LED strips with 120-180° are recommended, placed, when possible, at an angle.

CLICK HERE FOR RECOMMENDED STRIP LIGHT FOR LED COVE LIGHTING

We suggest to always use Aluminium profile with diffusor with all LED strips in Cove Lighting.  The aluminium profile will absorbe the heat from the LED strip to increase lifetime  will protect the strip from dust and guarantee straight and homogenous line of light.

CLICK HERE FOR RECOMMENDED PROFILE FOR LED COVE LIGHTING

2. Choose a LED light source with the right light output

Cove lighting can serve a variety of purposes. It can guide people, highlight architectural elements or evoke a certain design trend while providing ambient, general or task lighting.

It is highly recommended that the purpose and role-played in the illumination of a space decide the type of light source to be used. The following luminous flux per meter value can serve as a useful guide:

Ambient light or highlight of objects or furniture elements: up to 400 lumens per meter (160lm per foot)

CLICK HERE FOR RECOMMENDED STRIP LIGHT FOR HIGHLIGHT OF OBJECTS OR FURNITURE ELEMENTS


Highlight architectural elements: up to 900 lumens per meter or 300 lm/foot (many other light sources exist in the space)

CLICK HERE FOR RECOMMENDED STRIP LIGHT FOR HIGHLIGHT ARCHITECTURAL ELEMENTS


General illumination via lines of light and task lighting via spot lights: up to 2300 lumens per meter (600 lm/foot), depending on the cove design and materials used. In many cases up to 1300 lumens per meter (450 lm/foot) is sufficient

CLICK HERE FOR RECOMMENDED STRIP LIGHT FOR GENERAL ILLUMINATION 2300 LUMENS

 CLICK HERE FOR RECOMMENDED STRIP LIGHT FOR GENERAL ILLUMINATION 1300 LUMENS


Suggestion for length of cove of light for a living room of 20 sqm with 2.5m in height with the purpose of general lighting:

  • Lines of light with LED strip   900 lumen / meter: at least 25 meters total length

        click here for all details of this strip

  • Lines of light with LED strip 1300 lumen/ meter: at least 15 meters total length

        click here for all details of this strip

  • Lines of light with LED strip 2300 lumen /meter : at least  9  meters total length

        click here for all details of this strip

3. Use LED strips that are easy to install and have low redundancy of parts

The light sources have to be easily spread out over long distances and use as less auxiliary items as possible, for example wires, connectors, screws or transformers.  A large capacity transformer is recommended.

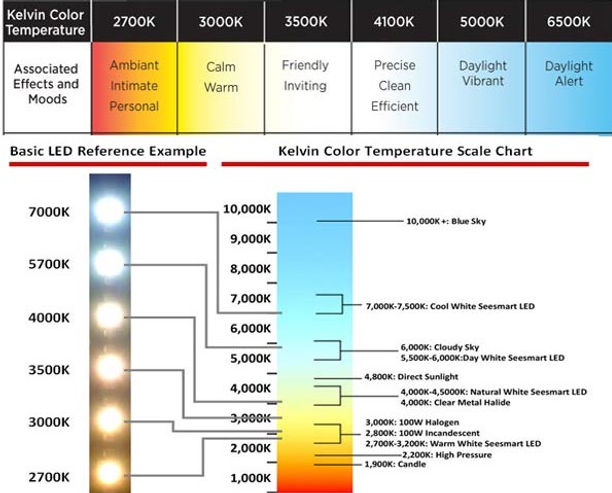

4. Choose the right colour temperature of your Cove-light

Our LED strip lights are available in all  single colour temperatures from Warm White 2700 and 3000K  thru Natural White 4000K up to Cool White 6000K.

The selection of the colour temperature is mainly a personal like and feel - important is that the colour temperature of your cove lighting matches with the rest of the General Lighting luminaires in your space (Spot and Down-lights) . It does not necessarily have to be the same colour temperature as your feature or decorative lights as long as you don't use them without additional General Lighting Luminaries  (Spot and Down-lights) as General lighting itself ( in case you use your decorative or feature light as the only source of General Lighting we suggest or to have separate circuits for Decorative Lights and the Cove lights or the same colour Temperature if on a single circuit).


Use of Tuneable White LED strip light for your Cove Lighting

Tunable white lighting technology is defined as the ability to control a light source’s color temperature output.

We have implemented this technology into our specification grade LED strip lighting products. Using alternating LED chips of different color temperatures, you are able to use one strip and a remote or via and APP to blend the LEDs and control the strip light’s output anywhere within the specified range.

CLICK HERE FOR PRODUCT DETAILS ON TUNEABLE WHITE LED STRIP

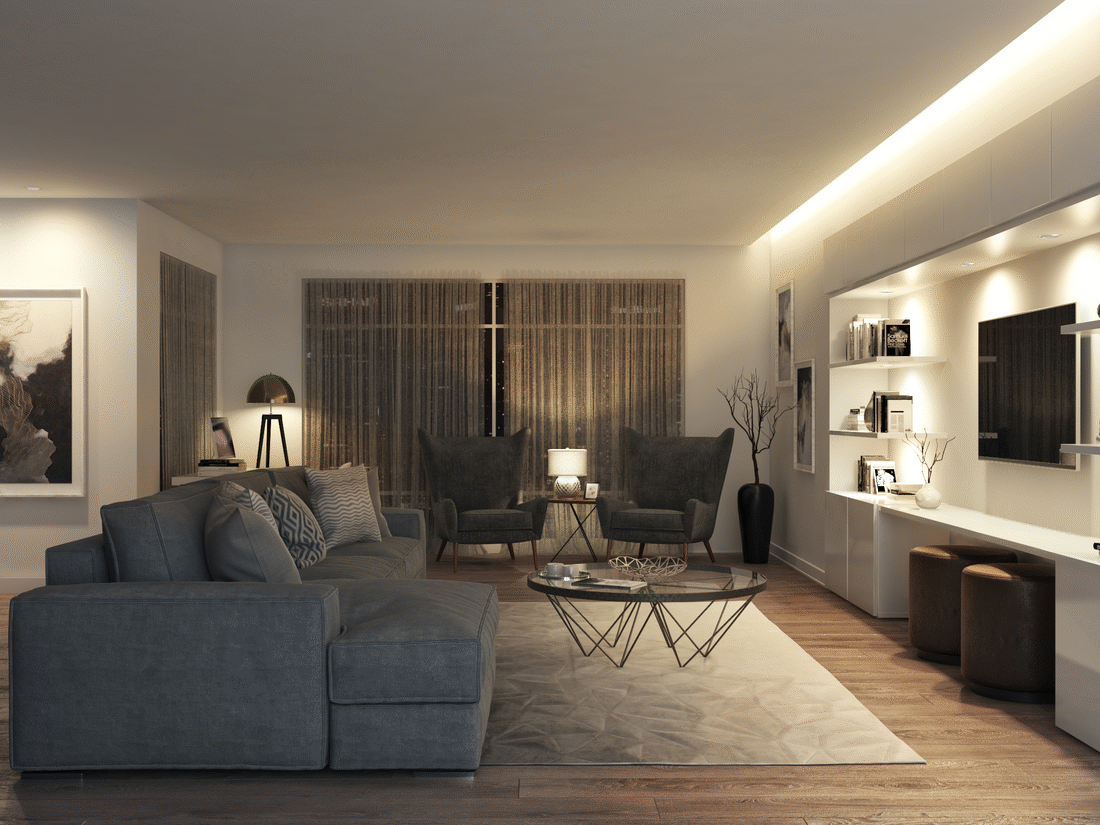

dynamic-white-living-room-examples-of-cc

Use of Color Changing RGB or RGBW LED Strip light for your Cove Lighting

RGB (red/green.blue) Led strip lights can be a nice feature for your cove and furniture Lighting. Controlled via remote or App with the RGB strip all colours of the Spectrum can be managed - even if its possible to have a yellowish or blueish white if you want also the option to have a pure white color we suggest to select the RGBW (red/green/blue + white ) strip.

CLICK HERE FOR PRODUCT DETAILS ON RGB LED STRIP

CLICK HERE FOR PRODUCT DETAILS ON RGBW LED STRIP

RGBWW 5in1 led strips.gif

FOR ANY FURTHER INFORMATION OR ASSISTANCE NEEDED YOU CAN ALWAYS CONTACT OUR LIGHTING EXPERT  > GO TO CONTACT CENTER

application special JUNE 2021

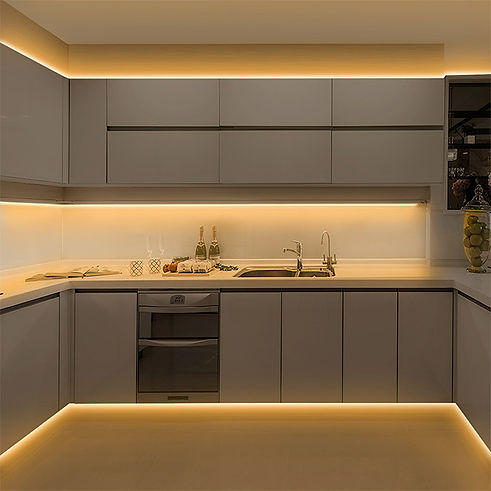

A little lighting can go a long way, and under cabinet lighting will transform your kitchen . Highlight the beauty of your kitchen while illuminating darker corners. Whether you need full under cabinet lighting in your kitchen, or want to accent upper or below cabinet light to shine making your space feel more open and welcoming.


Under cabinet lighting is the perfect way to brighten up your kitchen with  energy-efficient LED and it will help to give your kitchen a more modern look and feel. Illuminating your countertops not only makes them look great, but also allows you to see better as you prep fruits and vegetables while cooking. You’ll feel more at ease cutting and chopping knowing you can clearly see each motion you make.


Make Everyday Tasks Easier and give your kitchen a new shine With Under and Upper Cabinet Lighting from lightdubai

AED 129.00 by linear meter

includes:

profile

(select between corner or straight profile)

LED strip light IP65 (waterproof)

(select between 2700 or 4000K)

LED driver

(Tridonic Austria)

complete installation

(including consumables/wires)

GET IN TOUCH WITH US

for booking or more details
